Technical Specification

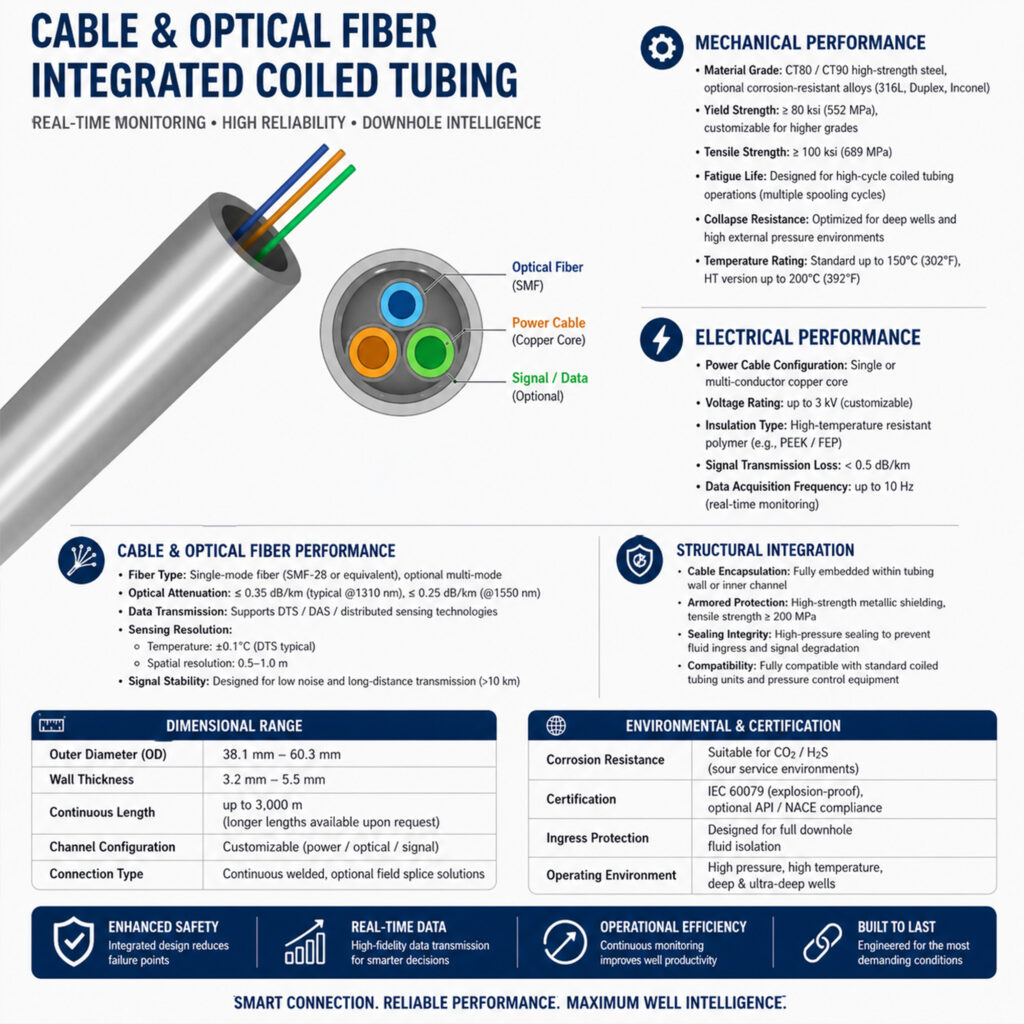

Cable & Optical Fiber Integrated Coiled Tubing Mechanical Performance: Material Grade:CT80 / CT90 high-strength steel, optional corrosion-resistant alloys (316L, Duplex, Inconel) Yield Strength:≥ 80 ksi (552 MPa), customizable for higher grades Tensile Strength:≥ 100 ksi (689 MPa) Fatigue Life:Designed for high-cycle coiled tubing operations (multiple spooling cycles) Collapse Resistance:Optimized for deep wells and high external […]
Application
Cable & Optical Fiber Integrated Coiled Tubing Cable & Optical Fiber Integrated Coiled Tubing is an advanced intelligent intervention solution that combines power transmission and fiber-optic sensing within a single continuous tubing structure. By embedding electrical cables and optical fibers directly into the coiled tubing, the system enables real-time downhole monitoring of critical parameters such as […]
Technical Specification

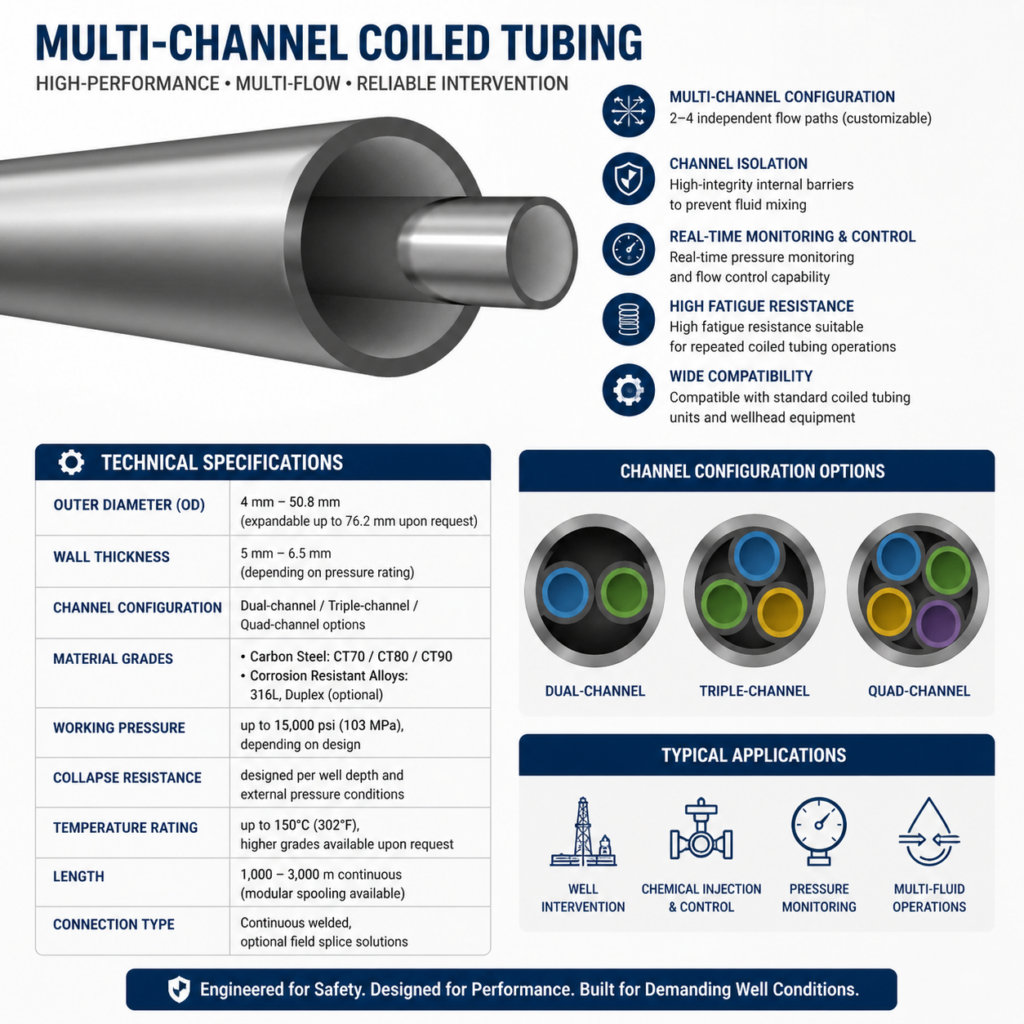

Key Technical Features: Multi-channel configuration: 2–4 independent flow paths (customizable) Channel isolation: High-integrity internal barriers to prevent fluid mixing Real-time pressure monitoring and flow control capability High fatigue resistance suitable for repeated coiled tubing operations Compatible with standard coiled tubing units and wellhead equipment Technical Specifications: Outer Diameter (OD):4 mm – 50.8 mm (expandable up […]
Application
Multi-channel Coiled Tubing Multi-channel Coiled Tubing is an advanced downhole solution featuring a multi-layer structure with independently isolated flow channels. It is specifically engineered to enable simultaneous injection of multiple fluids—such as oxygen, water, and CO₂—while effectively preventing cross-contamination. This design significantly enhances operational flexibility and efficiency in complex well environments. The system integrates real-time […]
CT-2507-90
CT-2507-90 1.000″ to 2.000″ Outside Diameter Wall Thickness Mass Per Un Lengh Nominal Inside Diameter Tube Body Load Min. Hydro Test Pressure Min. Internal Yield Pressure Collapse Pressure Specified Minimum Min. Yield Strength Min. Tensile Strength O.D. t tmin wpe ID in in lbs/ft in lbs lbs psi psi psi 1.000 0.075 0.070 0.76 0.850 […]
CT-2205-80
CT-2205-80 1.000″ to 2.000″ Outside Diameter Wall Thickness Mass Per Un Lengh Nominal Inside Diameter Tube Body Load Min. Hydro Test Pressure Min. Internal Yield Pressure Collapse Pressure Specified Minimum Min. Yield Strength Min. Tensile Strength O.D. t tmin wpe ID in in lbs/ft in lbs lbs psi psi psi 1.000 0.075 0.070 0.76 0.850 […]
