In the fields of oil and gas, petrochemical, nuclear power, biopharmaceutical manufacturing, and various laboratory applications, tube fittings play an essential role in ensuring the secure connection of piping systems. These systems are often subject to extreme conditions, requiring components that can withstand high pressure, temperature variations, and corrosive environments. Tubeplus fittings, such as fitting connectors, offer unmatched quality and performance in these challenging applications. One of the key features that enhance the reliability of Tubeplus fittings is the silver-plating process applied to the threads of their ferrule nuts. This article explores the importance of silver-plated threads in tube fittings, highlighting the benefits for tube fitting installation, sealing performance, and maintenance, while also showcasing Tubeplus’s exceptional product range, including its 316L stainless steel options.
Understanding Tubeplus Fittings: Components and Applications
A tube fitting typically consists of three main components:
- Fitting body
- Nut
- Ferrule (or sleeve)
These fittings are widely used across industries such as oil and gas, petrochemicals, nuclear power, biomedical manufacturing, electrical circuits, and laboratory pipelines. They ensure a tight, secure connection between pipes, which is critical for the safe and efficient transport of fluids and gases in high-pressure systems.
One common issue with stainless steel tube fittings, particularly those made of austenitic stainless steel (like 316L), is the risk of thread binding or cold welding during installation. This can cause significant operational issues, especially in high-stress environments. To prevent these problems, Tubeplus uses silver-plated threads for many of their fittings, ensuring smoother installation and better long-term performance.
Why Silver-Plated Threads Are Essential for Tube Fittings
1. Preventing Cold Welding and Thread Seizing
Austenitic stainless steel components, such as the fitting body, nut, and ferrule, have excellent corrosion resistance and workability. However, when these components are installed under high-pressure conditions, the temperature rapidly increases due to friction between the threads. This can lead to the destruction of the passive chromium oxide layer on the surface of the steel, which protects it from corrosion. As a result, the threads may experience seizing, sticking, or even cold welding, making future disassembly difficult or impossible.

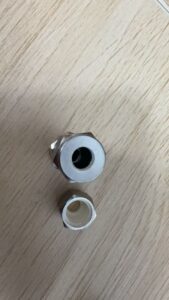

The solution to this issue is the application of silver plating to the internal threads of the ferrule nut. Silver, with its superior thermal conductivity, helps to dissipate heat more efficiently during the installation process. This reduces the risk of overheating the steel’s surface and preserves the integrity of the chromium oxide layer. Consequently, silver-plated threads prevent the locking or seizing of the threads, ensuring that the fitting remains easy to install, adjust, and disassemble for maintenance.
2. Reducing Installation Torque
The silver-plating process also enhances the lubricity of the threads, making it easier to screw the nut onto the fitting body. This reduces the installation torque required to achieve a secure, leak-free connection.
For instance, Tubeplus fittings with silver-plated threads can see a 30-50% reduction in installation torque compared to fittings with untreated threads. When combined with low-torque lubricants, the required installation torque can be reduced by as much as 70%. This is particularly beneficial in field installations where minimizing labor time and physical effort is crucial for operational efficiency.
3. Enhanced Sealing Performance
In addition to improving the installation process, silver-plated threads also contribute to enhancing the sealing capabilities of tube fittings. The silver layer serves as an additional sealant barrier during the tightening process, improving the compressive seal between the nut and fitting body. This results in better pressure resistance and ensures that the fitting remains leak-proof, even under extreme operating conditions.
The silver plating, in combination with ferrule technology, provides a robust seal that is resistant to high pressures and temperatures, making Tubeplus fittings a reliable choice for industries where safety and performance are non-negotiable.
4. Increased Durability and Longevity
The softness of silver makes it an effective lubricant, but it also adds a layer of protection to the threads. When the fitting is tightened, the silver-plated threads form an additional shield against wear, reducing the likelihood of thread damage or deformation over time. This increases the lifespan of the fitting, ensuring it performs reliably throughout its operational life.
The silver plating not only helps with installation but also provides protection against wear and tear in environments with frequent disassembly or in systems that undergo frequent pressure cycling.
Tubeplus Fittings: Quality and Product Range
Tubeplus is renowned for producing high-quality tube fittings that cater to a variety of industries, including oil and gas, petrochemical, and biopharmaceutical sectors. Their commitment to quality is evident in the materials they use, including 316L stainless steel, a corrosion-resistant material that is highly resistant to chloride-induced stress corrosion cracking.

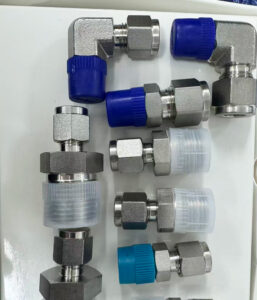

Some of the standard fittings from Tubeplus that feature silver-plated threads include:
- Splice 1/4″ to 1/4″ NPT Bore Through 316L
- 1/4″ to 1/2″ NPT Bore Through 316L
- 1/4″ to 3/8″ NPT Bore Through 316L
- 1/4″ x 1/2″ Male Reducing 316L
- 1/4″ to 1/4″ NPT 316L
These fittings are designed to provide reliable and efficient connections in a variety of applications, from high-pressure pipelines to subsea installations.
Tubeplus maintains a significant stock of these standard models, ensuring quick delivery for clients who need dependable, off-the-shelf solutions. The company’s commitment to quality manufacturing ensures that each fitting meets rigorous standards, including ISO certifications, and undergoes thorough testing to ensure optimal performance in demanding environments.
