CT-80
TC-80 1.000″ TO 2.000″ Outside Diameter Wall Thickness Calculated Inside Diameter Tube Body Load Torsional Yield Strength Minimum Internal Yield Strength Hydro Test Pressure Collapse Pressure Tensile Load Mass per Unit Length Specified Minimum Minimum Yield Strength Minimum Tensile Strength Ovality (Dmax-Dmin)/D 0 0.02 0.05 O.D. t tmin I.D. L=0 L=0 L=Ly/2 L=3Ly/4 […]
CT-70
CT-70 1.000″ TO 2.000″ Outside Diameter Wall Thickness Calculated Inside Diameter Tube Body Load Torsional Yield Strength Minimum Internal Yield Strength Hydro Test Pressure Collapse Pressure Tensile Load Mass per Unit Length Specified Minimum Minimum Yield Strength Minimum Tensile Strength Ovality (Dmax-Dmin)/D 0 0.02 0.05 O.D. t tmin I.D. L=0 L=0 L=Ly/2 L=3Ly/4 L=0 L=Ly/2 […]
Technical Specification

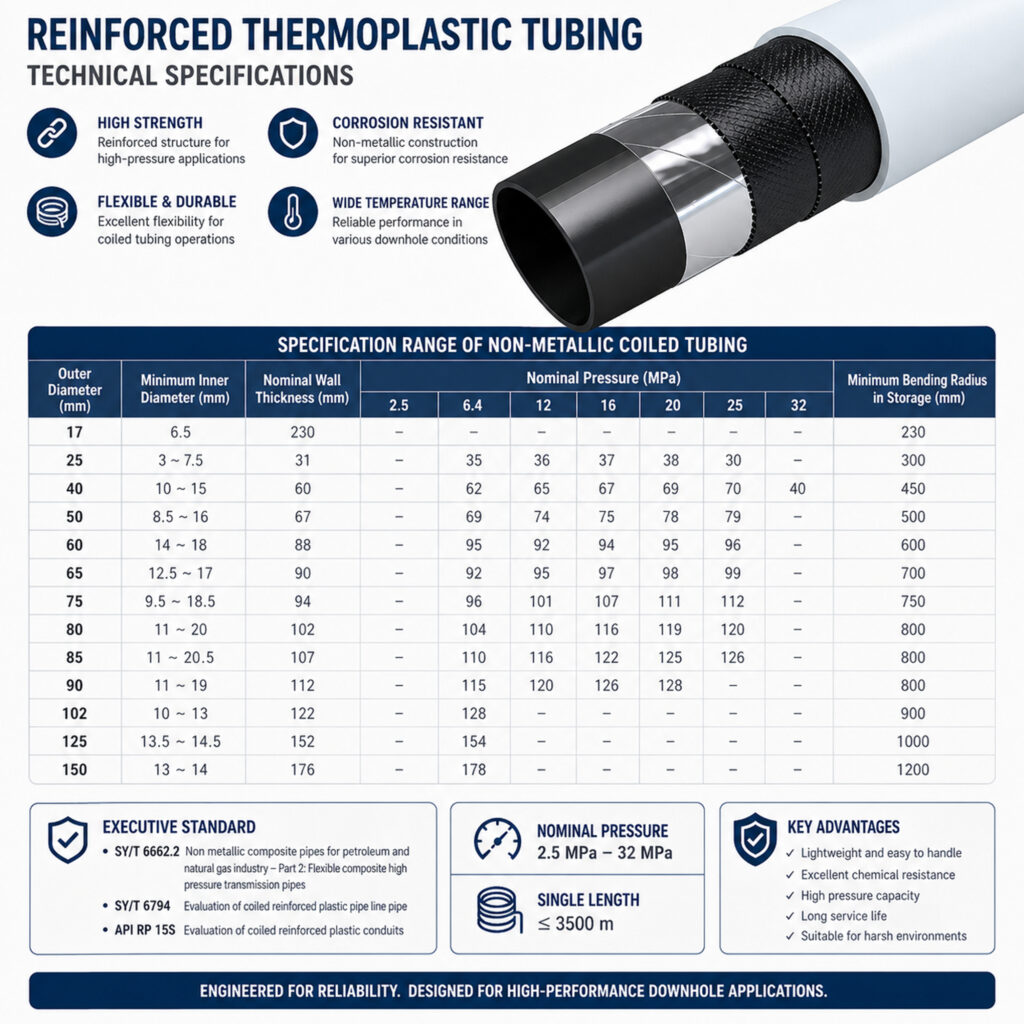

Specification Range of Non-metallic Coiled Tubing Minimum Inner Diameter (mm) Nominal Wall Thickness (mm) Nominal Pressure(MPa) Minimum Bending Radius in Storage (mm) 2.5 6.4 12 16 20 25 32 Outer Diameter(mm) 17 6.5 230 25 3~7.5 31 35 36 37 38 30 300 40 10~15 60 62 65 67 69 70 40 450 50 8.5~16 […]
Application
Product Introduction Non-metallic coiled tubing (RTP) is a high-pressure composite pipe with a polymer lining, reinforcement layer, and outer sheath, combining thermoplastic flexibility and corrosion resistance with high strength. Features and Usage Non-metallic coiled tubing is flexible, corrosion-resistant, light weight, and spoolable for joint-free, long-distance deployment. Its reinforced design supports up to 32MPa and thousands […]
Technical Specification

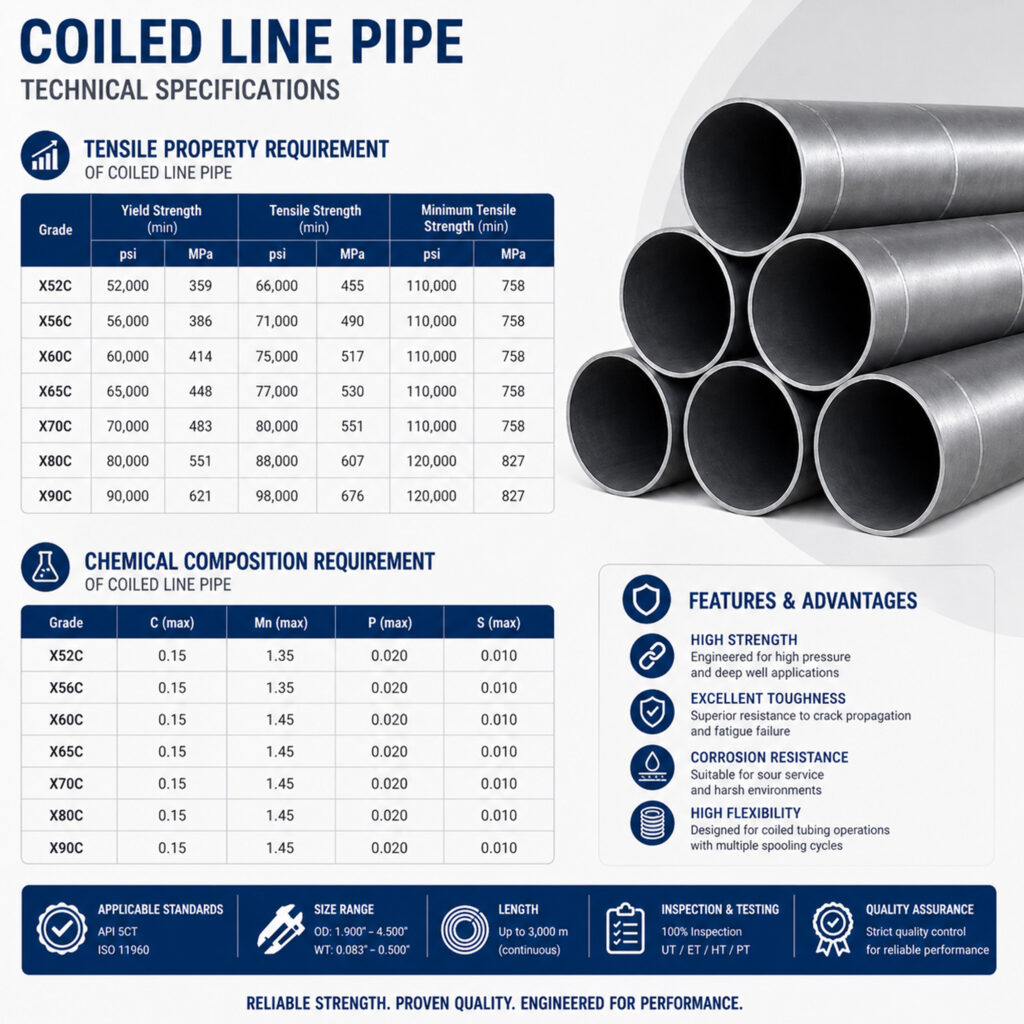

Tensile Property Requirement of Coiled Line Pipe Grade Yield strength Tensile strength (min) (min) (min) psi MPa psi MPa psi MPa X52C 52,000 359 66,000 455 110.000 758 X56C 56,000 386 71,000 490 110.000 758 X60C 60,000 414 75,000 517 110.000 758 X65C 65,000 448 77,000 530 110,000 758 X70C 70,000 483 80,000 551 110,000 […]
Application
Coiled Line Pipe is a high-strength, continuously welded pipeline designed for oil and gas transportation. Supplied in long continuous lengths, it significantly reduces the number of connections required compared to conventional pipe systems, thereby minimizing potential leak points and enhancing overall system integrity and safety. Engineered with excellent flexibility and mechanical strength, Coiled Line Pipe […]
