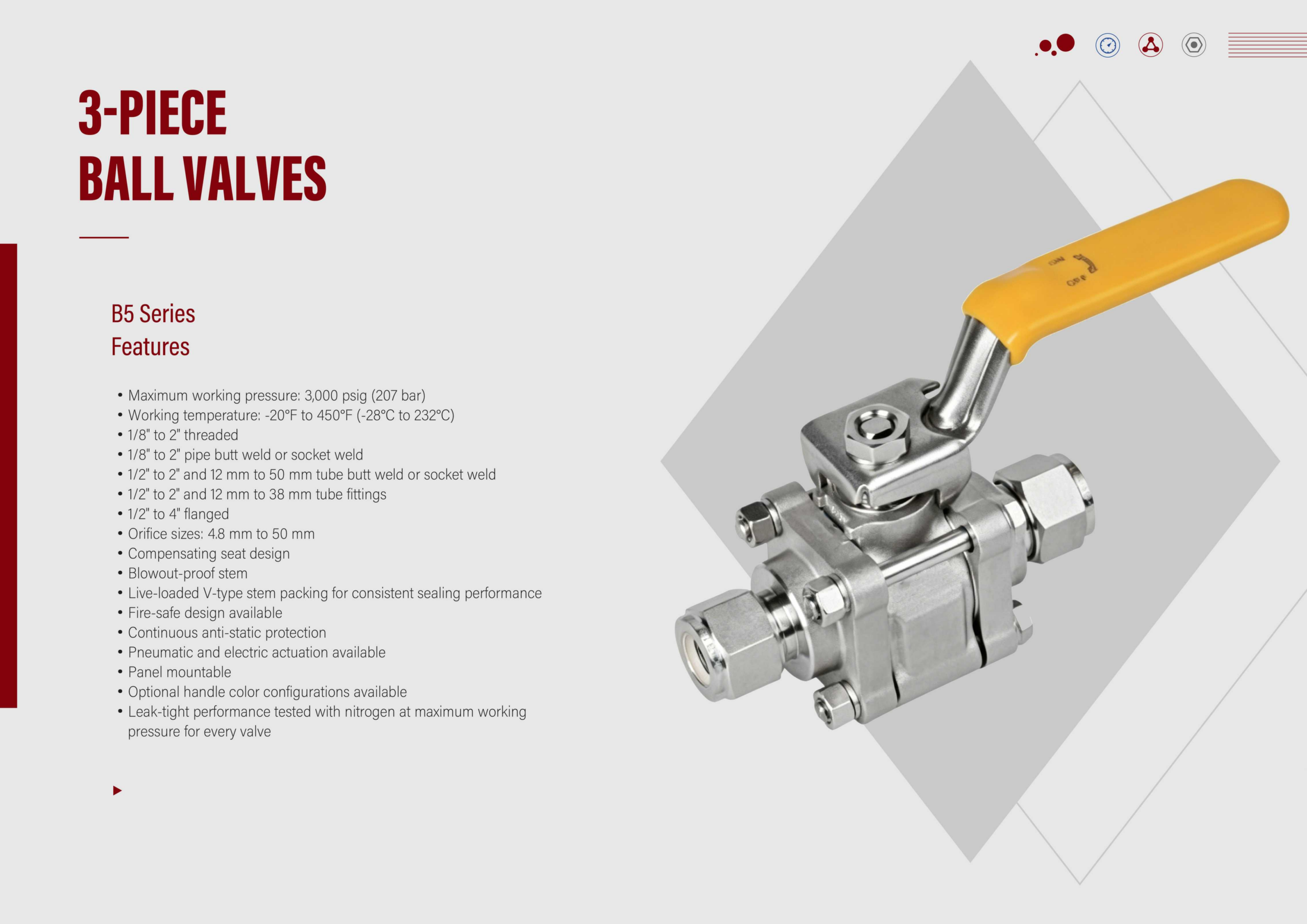

B5 Series

Features

Maximum working pressure: 3,000 psig (207 bar)

Working temperature: -20°F to 450°F (-28°C to 232°C)

1/8″ to 2″ threaded

1/8″ to 2″ pipe butt weld or socket weld

1/2″ to 2″ and 12 mm to 50 mm tube butt weld or socket weld

1/2″ to 2″ and 12 mm to 38 mm tube fittings

1/2″ to 4″ flanged

Orifice sizes: 4.8 mm to 50 mm

Compensating seat design

Blowout-proof stem

Live-loaded V-type stem packing for consistent sealing performance

Fire-safe design available

Continuous anti-static protection

Pneumatic and electric actuation available

Panel mountable

Optional handle color configurations available

Leak-tight performance tested with nitrogen at maximum working pressure for every valve
