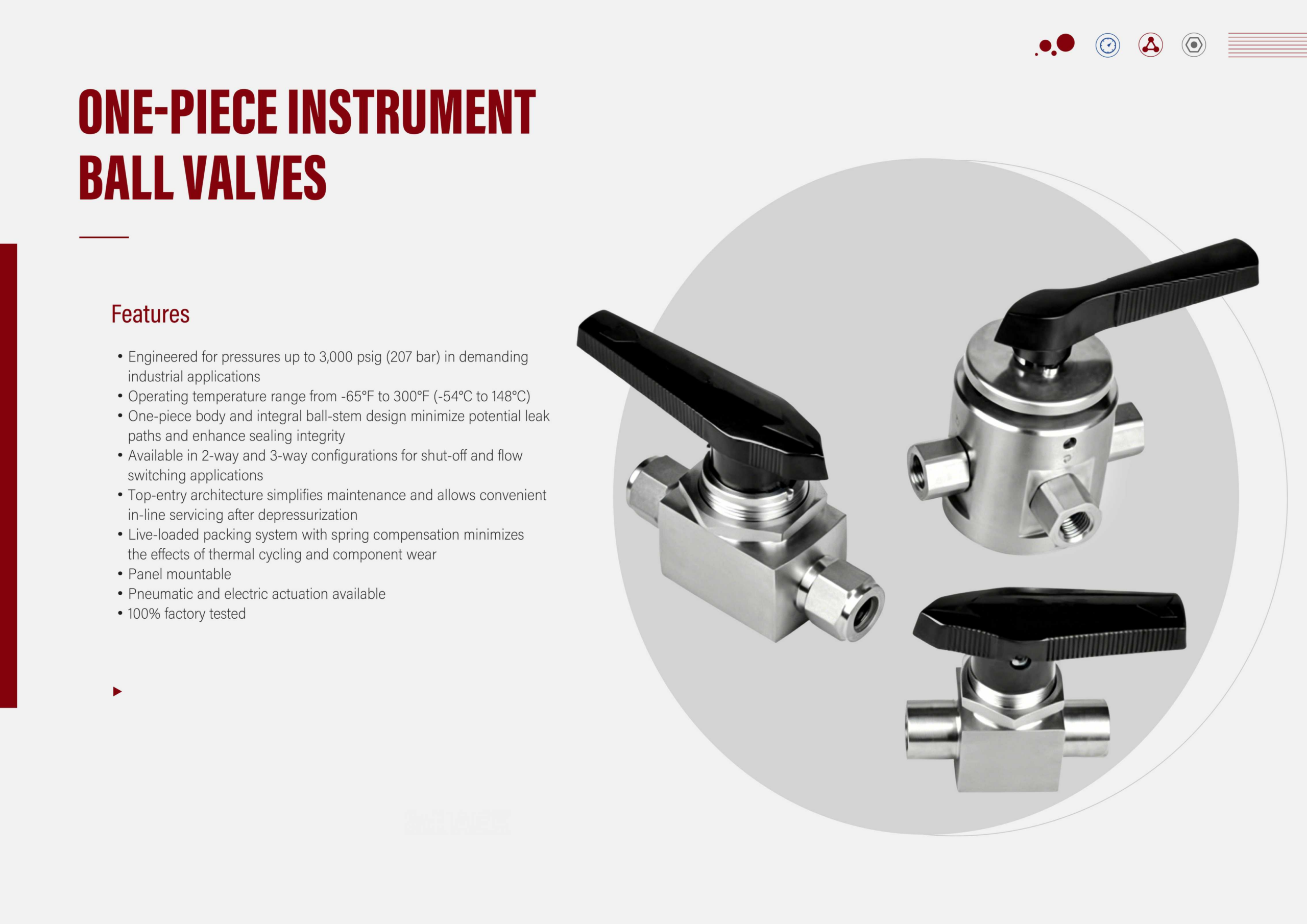

Features
Engineered for pressures up to 3,000 psig (207 bar) in demanding industrial applications
Operating temperature range from -65°F to 300°F (-54°C to 148°C)
One-piece body and integral ball-stem design minimize potential leak paths and enhance sealing integrity
Available in 2-way and 3-way configurations for shut-off and flow switching applications
Top-entry architecture simplifies maintenance and allows convenient in-line servicing after depressurization
Live-loaded packing system with spring compensation minimizes the effects of thermal cycling and component wear
Panel mountable
Pneumatic and electric actuation available
100% factory tested
