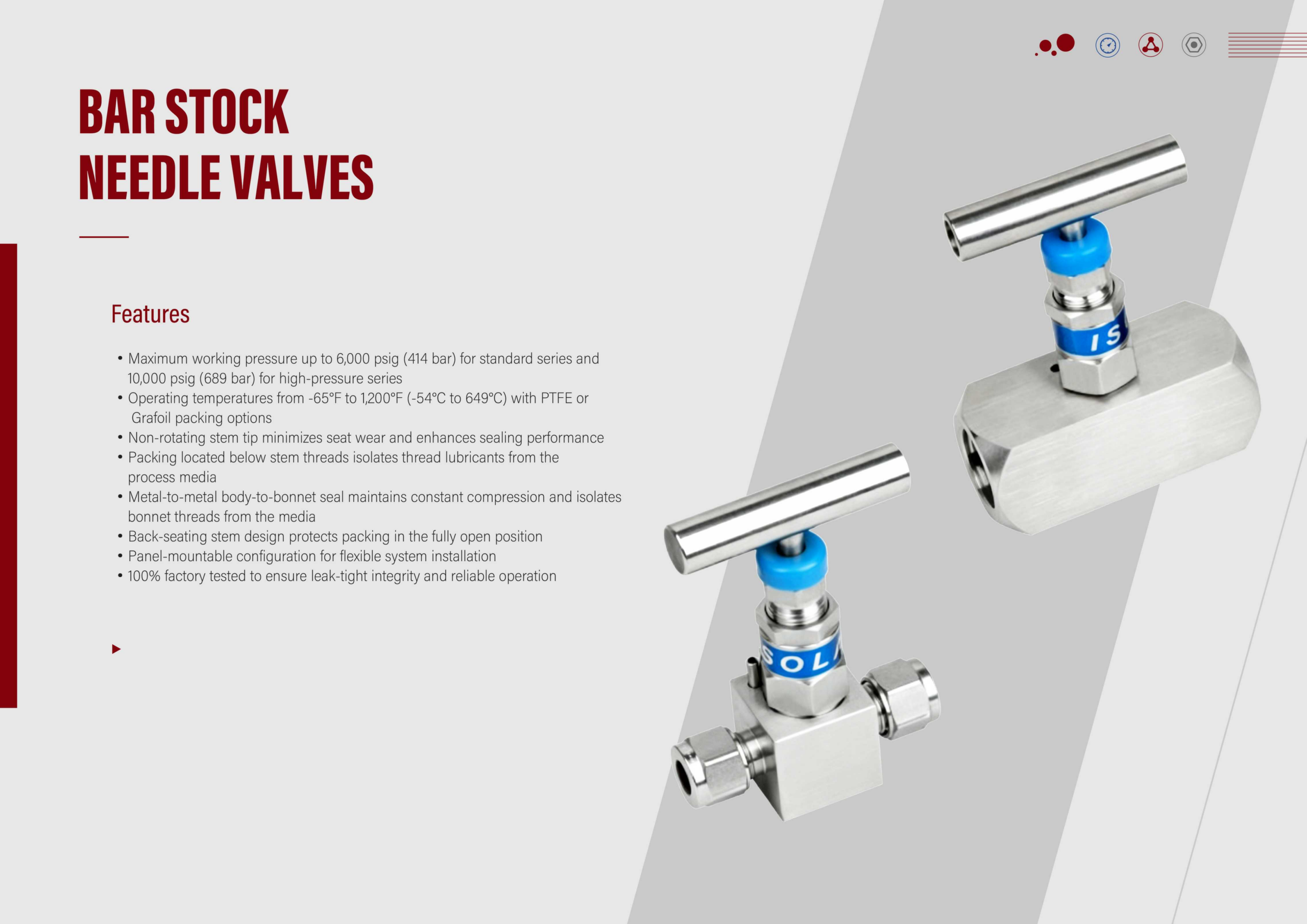

Features

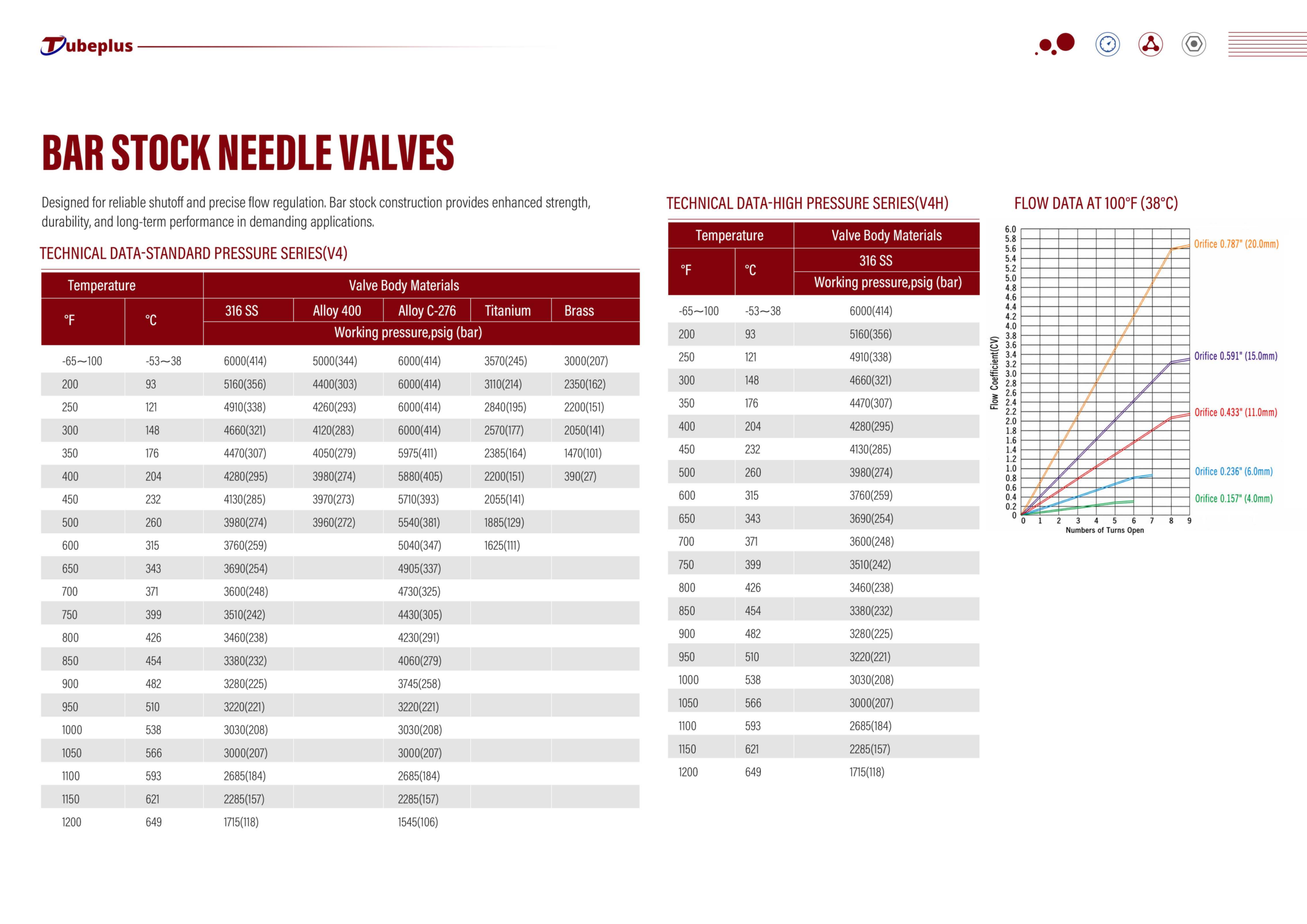

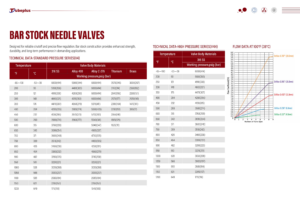

Maximum working pressure up to 6,000 psig (414 bar) for standard series and 10,000 psig (689 bar) for high-pressure series

Operating temperatures from -65°F to 1,200°F (-54°C to 649°C) with PTFE or Grafoil packing options

Non-rotating stem tip minimizes seat wear and enhances sealing performance

Packing located below stem threads isolates thread lubricants from the process media

Metal-to-metal body-to-bonnet seal maintains constant compression and isolates bonnet threads from the media

Back-seating stem design protects packing in the fully open position

Panel-mountable configuration for flexible system installation

100% factory tested to ensure leak-tight integrity and reliable operation
