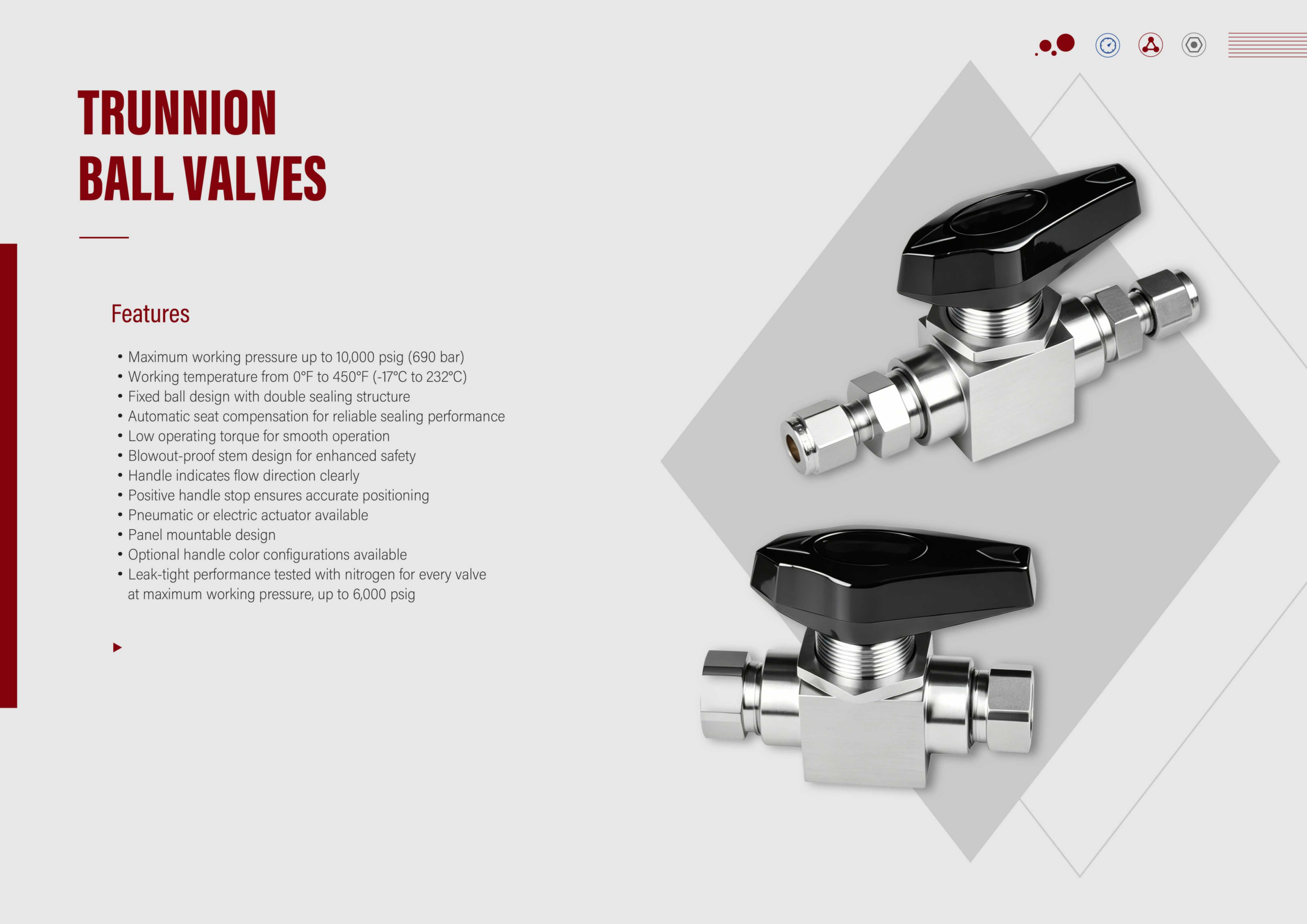

Features

Maximum working pressure up to 10,000 psig (690 bar)

Working temperature from 0°F to 450°F (-17°C to 232°C)

Fixed ball design with double sealing structure

Automatic seat compensation for reliable sealing performance

Low operating torque for smooth operation

Blowout-proof stem design for enhanced safety

Handle indicates flow direction clearly

Positive handle stop ensures accurate positioning

Pneumatic or electric actuator available

Panel mountable design

Optional handle color configurations available

Leak-tight performance tested with nitrogen for every valve at maximum working pressure, up to 6,000 psig
