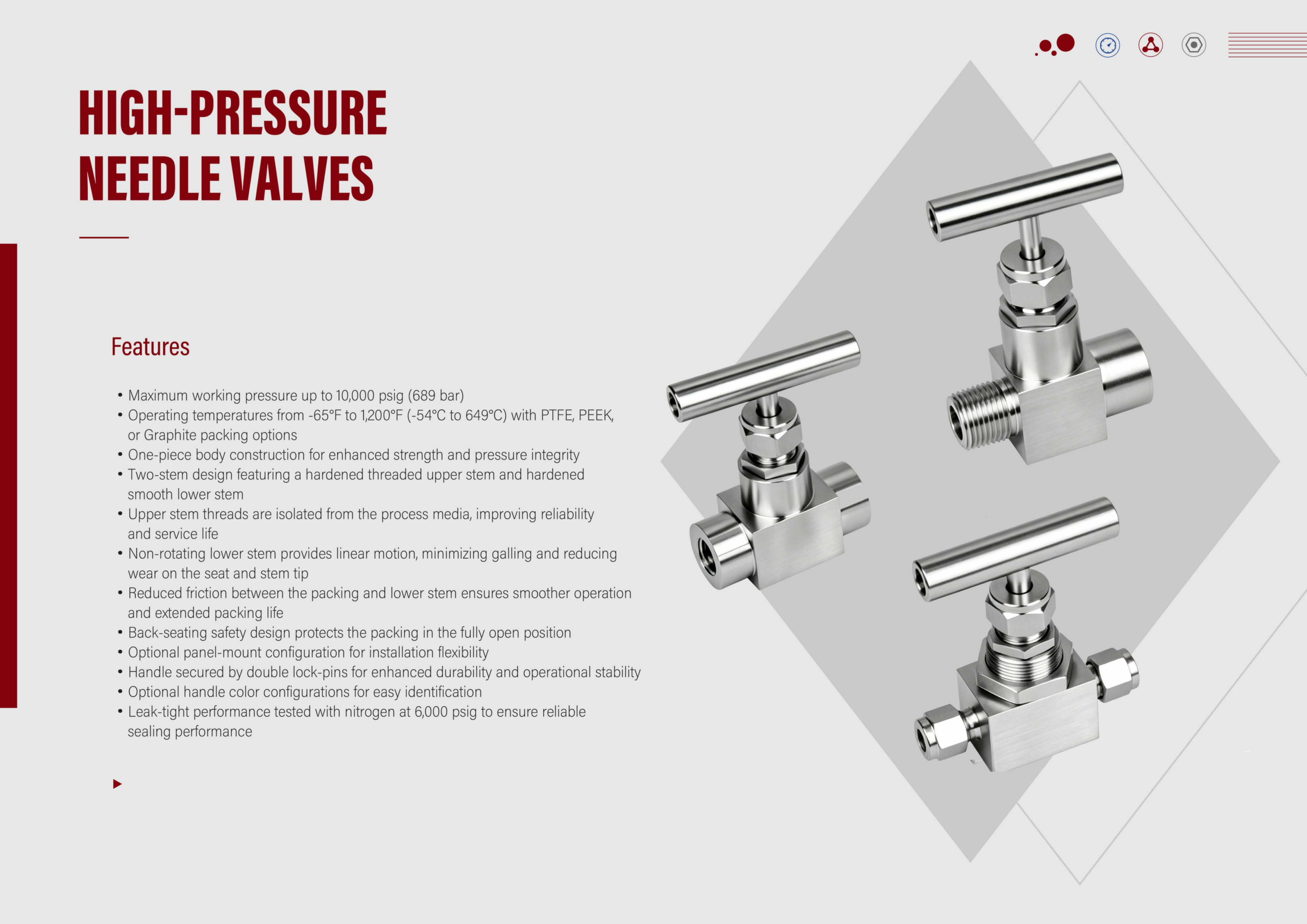

Features

Maximum working pressure up to 10,000 psig (689 bar)

Operating temperatures from -65°F to 1,200°F (-54°C to 649°C) with PTFE, PEEK or Graphite packing options

One-piece body construction for enhanced strength and pressure integrityTwo-stem design featuring a hardened threaded upper stem and hardened smooth lower stem

Upper stem threads are isolated from the process media, improving reliability and service life

Non-rotating lower stem provides linear motion, minimizing galling and reducing wear on the seat and stem tip

Reduced friction between the packing and lower stem ensures smoother operation and extended packing life

Back-seating safety design protects the packing in the fully open position

Optional panel-mount configuration for installation flexibility

Handle secured by double lock-pins for enhanced durability and operational stability

Optional handle color configurations for easy identification

Leak-tight performance tested with nitrogen at 6,000 psig to ensure reliable sealing performance
