Reinforced Thermoplastic Pipe (RTP)

Product Introduction

Non-metallic coiled tubing (RTP) is a high-pressure composite pipe with a polymer lining, reinforcement layer, and outer sheath, combining thermoplastic flexibility and corrosion resistance with high strength.

Features and Usage

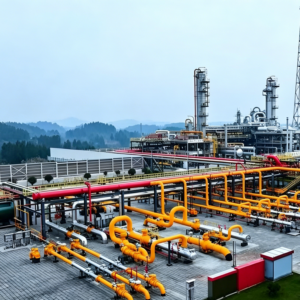

Non-metallic coiled tubing is flexible, corrosion-resistant, light weight, and spoolable for joint-free, long-distance deployment. Its reinforced design supports up to 32MPa and thousands of meters in length. Widely used in oil and gas gathering, fluid injection, methane transport, sewage treatment, and chemical delivery.

Series of Alcohol Injection Pipe

It is mainly used for high-pressure centralized alcohol injecting of multi-well in oil and gas fields. It has the characteristic that good alcohol resistance, low investment, long single length and fast construction.



Series of Water Injection Pipe

It is mainly used for single-wellwater injection in oil and gas fields, sewage re-injection, ternary polymer transmission, and water supply pipe lines. It offers excellent resistance to acids, alkalis, and inorganic salts, along with corrosion resistance, low friction, no scaling, and environmental safety.



Wall Thickness Tolerance of RTP

Inside diameter Specified minimum wall thickness Tolerance of wall thickness
17mm-50mm 5.5mm-16.5mm +0.5
60mm-125mm 9.5mm-18.5mm +0.6
150mm 14.0mm-22.5mm +0.8



Physical and Chemical Property of RTP

Nominal size (mm) Nominal pressure (MPa) Compression cracking stability Longitudinal retraction (%)
DN17-DN150 2.5-32 No crack on the surface <3
Short term hydrostatic strength Short time burst pressure
Normal temperature: nominal pressure grade x 2.
Keep it for 1H without rupture or leakage;
65℃ or design temperature (>65℃): nominal pressuregrade x 1.5, keep it for 165h, without rupture and leakage		 Normal temperature: ≥3.0 times nominal pressure grade:
65 ℃ or design temperature (>65 ℃): ≥3.0 times nominal pressure rating × ft
Minimum bending radius (MBR) test Short time circulating pressure
Meet the requirements of normal temperatureshort-time burst pressure ≥7000 cycles, no rupture or leakage
1000h survival test Gas sealing performance (for gas transmission pipe)
No crack or leakage at 65 ℃ or design temperature(>65 ℃) Normal temperature: nominal pressure grade x 1.25, keep the pressure for 3h, no crack, no leakage, and the pressure drop is no more than 5%



Series of Oil Transmission Pipe
It is mainly used for oil-gas-water mixture transmission in oilfields. It has the characteristic that high strength, high temperature resistance, anti-scaling, smooth inner wall, good thermal insulation performance, safe and  fast construction and so on.



Series of Water Injection Pipe
Mainly used for the transportation of natural gas, shale gas, carbon dioxide, and coalbed methane. It has excellent resistance to H2S and CO2 corrosion, features high transmission speed, and offers a high safety factor.

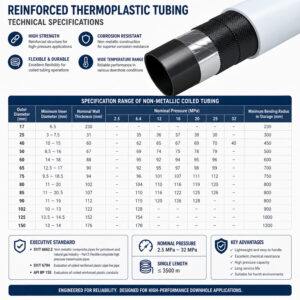

Specification Range of Non-metallic Coiled Tubing

Minimum Inner Diameter (mm) Nominal Wall Thickness (mm) Nominal Pressure (MPa) Minimum Bending Radius in Storage (mm)
2.5 6.4 12 16 20 25 32
Outer Diameter (mm)
17 6.5 230
25 3~7.5 31 35 36 37 38 30 300
40 10~15 60 62 65 67 69 70 40 450
50 8.5~16 67 69 74 75 78 79 500
60 14~18 88 95 92 94 95 96 600
65 12.5~17 90 92 95 97 98 99 700
75 9.5~18.5 94 96 101 107 111 112 750
80 11~20 102 104 110 116 119 120 800
85 11~20.5 107 110 116 122 125 126 800
90 11~19 112 115 120 126 128 800
102 10~13 122 128 900
125 13.5~14.5 152 154 1000
150 13~14 176 178 1200



Executive Standard:
SY/T6662.2 non metallic composite pipes for petroleum and natural gas industry Part 2: flexible composite high pressure transmission pipes
SY/T 6794 evaluation of coiled reinforced plastic pipeline pipe
API RP 15s evaluation of coiled reinforced plastic conduits
Nominal pressure: 2.5MPa-32MPa
Single length: ≤3500m
